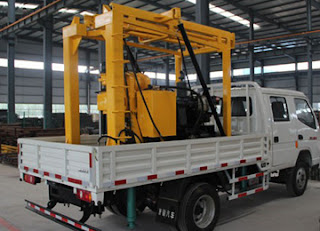

XYC-200GT Truck Mounted Drilling Rig

Chinacoal05
m.chinacoalintl.com
Features
1. The XYC-200GT truck mounted drilling rig is matched with the technologically patented cone clutch which can deliver large torque and has the features of handy operation and free maintenance.
2. It utilizes the hydraulic chuck, and can achieve rechuck without the need of stopping the machine. The drilling efficiency can be elevated effectively.
3. The small type product is also configured with the hydraulic control drill tower. It has good mobility and can get to the jobsite fast.
4. The truck mounted drilling rig also takes usage of 53x59 hexogen drive drilling rod marked by strong rigidity and the capability of delivering large torque.
5. The spindle box of the product employs four groups of bearings to achieve location for guaranteeing that the gyrator has enough rigidity to work with the gravel bed, pebble bed, and other complex geological conditions.
6. The module of the planetary gear of the winch is increased, and the support frame is available for the winch. The lifting and braking ability of the winch can be raised enormously.
Application Range
The truck mounted drilling rig has a specialty application range involving geological survey exploration, basic exploration for road and high-rise building, drilling of the inspection hole of various kinds of concrete structures, the subgrade grouting hole drilling and direct grouting, the construction of dyke and dam of the river, the civil well and the ground temperature central air conditioning, etc.
Item
Number
Drilling method
Rotary
Drilling depth
200meter
Drilling hole diameter
75mm-300mm
Power
15 KW
22HP
Rig working outside size
Length
5995mm
Width
2060mm
Height
7500mm
Rig weight
1500kg
Drilling kelly
53/59*4 meter
Drilling rod
50mm
Drilling bit
75mm-300mm
Spindle
64,128,287,557
Hoist
Hoist reel
140mm
Single lifting speed
0.12,0.22,0.49,0.95
Single lifting force
24KN
Wireline capacity
35 meters
Wireline size
13mm
Mast
Loading capacity
5T
Mast height
6m
Mast leg
1601206
Swivel
Max lifting force
50KN
Equiped hoise diameter
50mm
Mud pump
Model
BW-160
Displacement
160L/min
Working pressure
1.3Mpa
Reciprocate times
165 times/min
Truck
Model
OuLingZB1043LSDS
Motor mode/ power
LN4D27E3/66KW
Seating capacity
3+3
